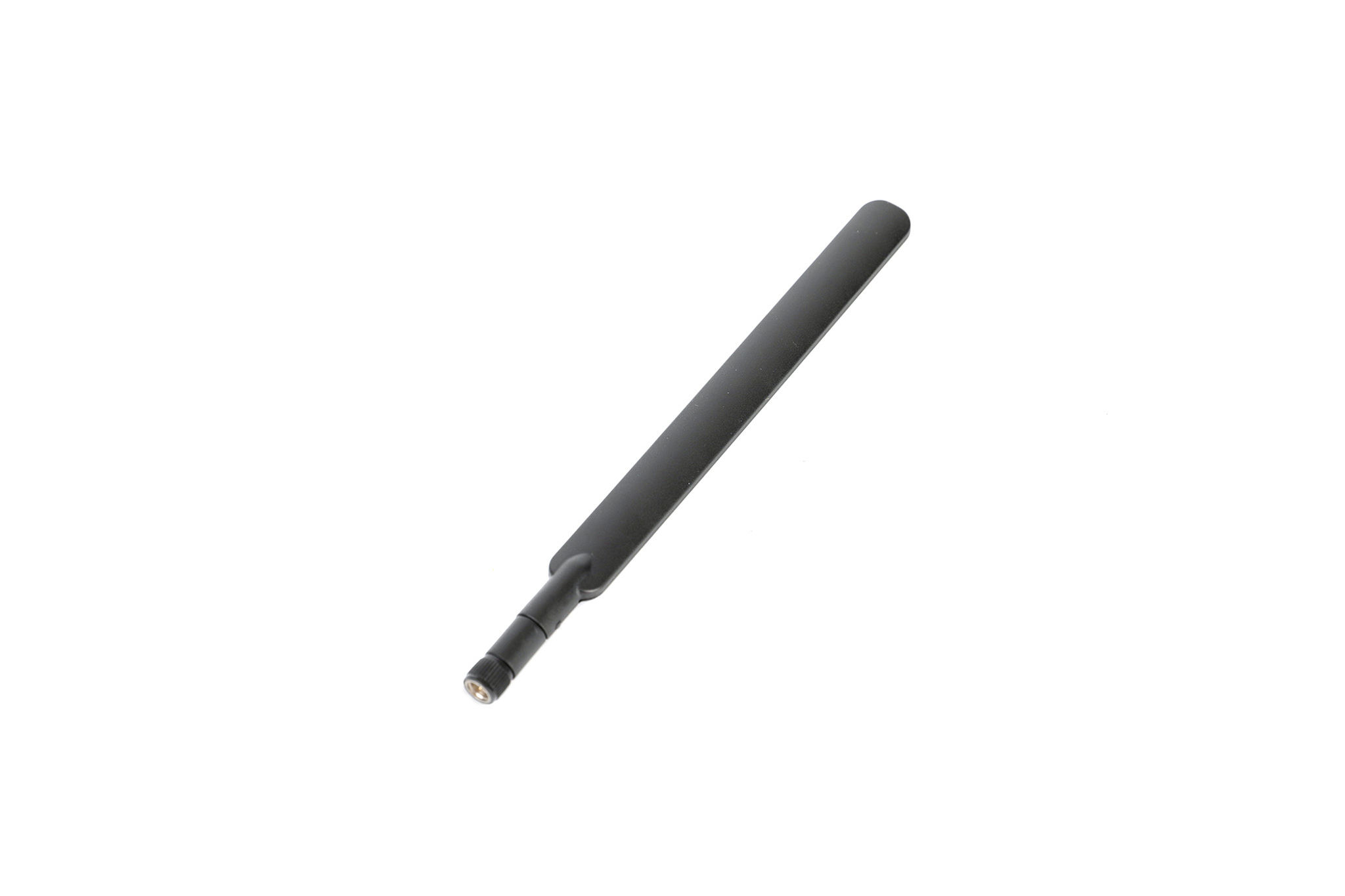

L-5RS5

L-5RS5

$2.00Price

5G Ultraband Hinged Monople Blade Antenna

  • Description

    The L-5RS5 is a compact, durable ultraband hinged monopole blade antenna supporting 5G, LTE, WCDMA, and Wi-Fi frequencies. With its wide range and high efficiency, it’s perfect for cellular IoT applications. The hinged swivel design allows for optimal positioning and minimizes impact damage compared to fixed blade antennas. It connects via an SMA plug (male pin) connector.

  • Key Features

    • Supports 5G / LTE / WCDMA & WIFI
    • Wide Application
    • High Reliability/Sensitivity
    • Compact Size, Easy to install.
    • RoHS Compliant
  • Applications

    • LTE/Wi-Fi Radios
    • Gateways
    • Set-top Boxes
    • Security
    • Transportation
    • Smart Agriculture
  • Frequency

    Range 1

    • 5G/LTE: 690 - 960 MHz
    • VSWR: 2.0
    • Peak Gain: 0.9 dBi
    • Efficiency: 30%

    Range 2

    • 5G/LTE: 1710 - 5000 MHz
    • VSWR: 3.0
    • Peak Gain: 3.5 dBi
    • Efficiency: 60%

    Range 3

    • 2.4G WiFi: 2400 - 2500 MHz
    • VSWR: 4.0
    • Peak Gain: 0.3 dBi
    • Efficiency: 50%
  • Electrical Specifications

    • Radiation: Omnidirectional
    • Impedance: 50 Ω
    • Electrical Type: Monopole
    • Polarization: Linear
  • Mechanical Specifications

    • Type: Hinge / Swivel Blade Type
    • Dimensions: 190 x 16 x 10 mm
    • Connector: SMA Plug (male pin)
    • Mounting Type: Connector Mount
    • Casing: Yes
    • Color: Black
    • Material: PC + ABS
